|Place of Origin:||China|
|Minimum Order Quantity:||100m|
|Packaging Details:||plastic bag and carton|
|Delivery Time:||3-10 days|
|Payment Terms:||T/T Prepaid|
|UV Resistance:||Above 95% UV Light Can Penetrate The Cover||Heat Resistance:||-80-200C Degree|
|Fireproof:||Vo Grade||Anticorrosive:||Can Be Used Many Kinds Of Chemical ,medical Fields|
|Non-toxic:||Can Be Used In Food , Medical Etc Fields||Transparent:||Above 95% Light Can Penetrate The Tube|
|Insulation:||Perfect Insulation For Electric|

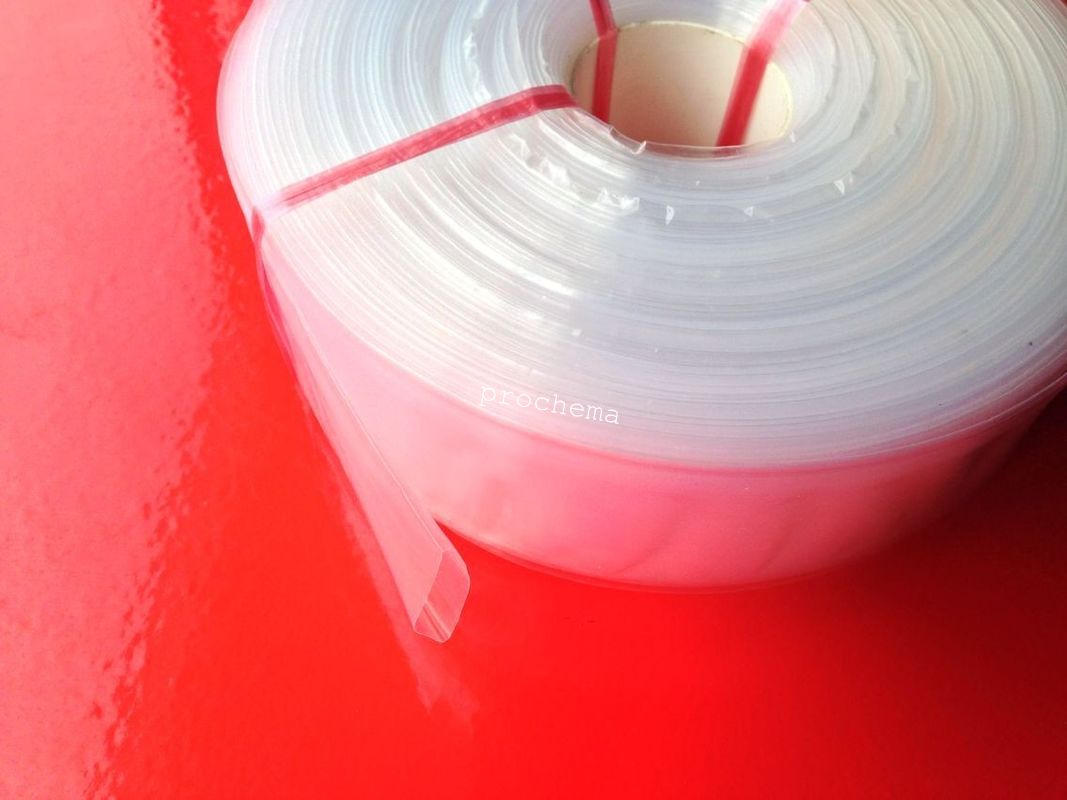

FEP UV lamp cover, UV lamp anti-explosion protected tube For T5 (15-16mm)
FEP shrinktube is made from FEP resin and prepared by the technology of thermoplastic extrusion and blowing. It has non-sticking, heat-resistance, aging resistance, corrosive resistance, non-flammability and good electric property. It can be solid adhesive for PTFE and also a good adhesive for laminating various materials. Its working temperature is up to 200 and is an ideal material for circuit board and flat cable. The shrink ratio is 30% . (1.3:1)
Office-work machine 's roll packing
paper machine's roll packing
printing and dyeing machine's roll packing
printing machineroll packing
the main insulation of rotor of the electric instrument
make the magma sample in the field of oil field ect.
LCD manufacturing plant
Connect body to single-ended luminous tube for single core optical fiber
Heat exchanger ,Steam piping
High purity reagents duct
All kinds of corrosive medium (harsh solvents) pipeline
Various frequentcy electric wire ,electric cable sheath , slot insulation tube(submersible motor wiring harness with slot insulation pipe, air conditioning components with tube).
Turnkey flourine plastic tube for type O sealing ring
Note: If you need any products of ours, please kindly contact with us directly by following contaction . Then we can reply you faster and easy . Thanks
UV lamp protecting
FEP & PFA has perfect anticorrosive properties and heat resistance and electric resistance. they are widely used in the fields of electrical,petrochemical,industrial,IT industrial.They are the perfect material so making VU lamp protection tube, anticorrosice tube
FEP is both transparent to UV-A and UV-C light and totally resistant to it as well as being temperature resistant. Therefore ,it makes an excellent material for shatter proofing UV lamps used in the food industry where glass free areas are required. Other plastic voerings enbrittle or discolour under the effect of the UV radiation . If the lamp suffers damage ,the glass is contained in teh shrunk on jacket.
Linear Lamps of any Size.
Circular and other shapes.
Fitted boots for U shaped lampes.
Low light transmission loss
Loss of UVA AND UVC light is much less compared with other polymer coatings. For our usual coatings,loss of UVA is arround 4% and UVC is 11%.We know of no other suitable flexible coatings that provide less loss of UV.
High low temperature resistance:
-200--200°C,high temperature strength is 2 times higher than PTFE
Good adhesive and heat sealability with PTFE:
Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).
None stick to water ,oil :water contact angle:θ=114o
Electric reliability,High dielectric
60HZ-60MHZ,Under the high and low temperature,thepermittivitykeeps2.1even if the surface damaged ,it won’t has conductive track.
Voltaic Arc Resistance>165sNo electric leakage
Weather resistance:It can be used in sunlight and ozone long
Anti-corrosion:Only in high temperature, Fluorin and alkalis can effect it,others acid,alkali or ester won’t effect it.
Fireproof :If firing, and will still insulate .
UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient
Technical data of FEP:
|General purpose||Electric purpose|
|Temperature range°C||-200 -+200||-200 -+200|
|Longi&tray,shrink rate %≤||3.0||3.0|
|Tensile strength Mpa ≥||14||14|
|Elongation at break %≤||175||175|
|Tear Strength (N/m) ≥||4.9x104||4.9x104|
|Dielectric Constanct (106Hz)||2.15|
|Dissipation Factor 106Hz≤||1x10-3|
|Volume resistance (Ω.m)||1x1014|
Dia ø1.5 --300mm,
Thickness: 0.015mm to 0.75mm.
Length :50mm to unlimited.
For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm . For straight lamp shape, U shape,H shape.
Color and sizes can be customiszed .Surface treated can be done (chemical or plasma treated)
Plastic bag &carton . Customized is acceptable
Advise you to accept the flat long roll length tube form . Why ?
Bcs : 1. it won't effect your covering the UV lamp
2.Saving your much shipping cost
3.Easy to keep in stock
4.you can cut it into the length what you need
