|Place of Origin:||China|
|Minimum Order Quantity:||100m|
|Packaging Details:||plastic bag and carton|
|Delivery Time:||3-10 days|
|Payment Terms:||T/T Prepaid|
FEP shrinktube is made from FEP resin and prepared by the technology of thermoplastic extrusion and blowing. It has non-sticking, heat-resistance, aging resistance, corrosive resistance, non-flammability and good electric property. It can be solid adhesive for PTFE and also a good adhesive for laminating various materials. Its working temperature is up to 200 and is an ideal material for circuit board and flat cable.
Note: If you need any products of ours, please kindly contact with us directly by following contaction . Then we can reply you faster and easy . Thanks
FEP TUBE USAGE :
Office-work machine 's roll packing
paper machine's roll packing
printing and dyeing machine's roll packing
printing machineroll packing
the main insulation of rotor of the electric instrument
make the magma sample in the field of oil field ect.
LCD manufacturing plant
Connect body to single-ended luminous tube for single core optical fiber
Heat exchanger ,Steam piping
High purity reagents duct
All kinds of corrosive medium (harsh solvents) pipeline
Various frequentcy electric wire ,electric cable sheath , slot insulation tube(submersible motor wiring harness with slot insulation pipe, air conditioning components with tube).
Turnkey flourine plastic tube for type O sealing ring

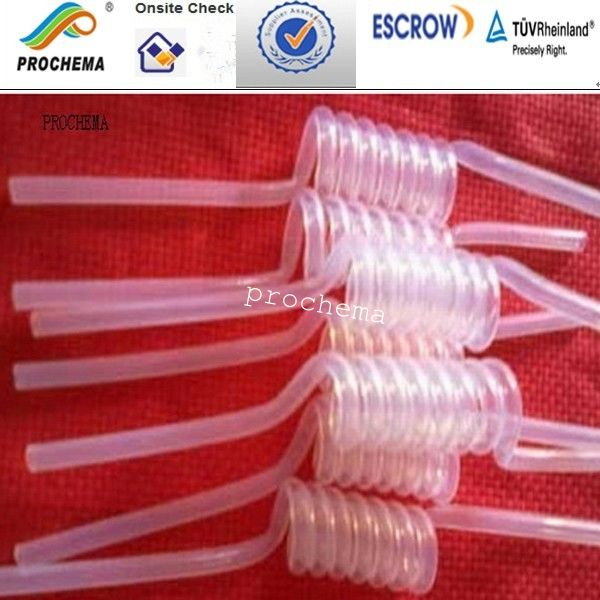

FEP coil pipes:1.anticorrosive 2 insulation anticorrosive 3. Flame to hold 4. Good cooling 5. Good bendability
High low temperature resistance:
-200--200°C,high temperature strength is 2 times higher than PTFE
Good adhesive and heat sealability with PTFE:
Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).
None stick to water ,oil :water contact angle:θ=114o
Electric reliability,High dielectric
60HZ-60MHZ,Under the high and low temperature,thepermittivitykeeps2.1even if the surface damaged ,it won’t has conductive track.
Voltaic Arc Resistance>165sNo electric leakage
Weather resistance:It can be used in sunlight and ozone long
Anti-corrosion:Only in high temperature, Fluorin and alkalis can effect it,others acid,alkali or ester won’t effect it.
Fireproof :If firing, and will still insulate .
UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient
Technical index of FEP:
|General purpose||Electric purpose|
|Temperature range°C||-200 -+200||-200 -+200|
|Longi&tray,shrink rate %≤||3.0||3.0|
|Tensile strength Mpa ≥||14||14|
|Elongation at break %≤||175||175|
|Tear Strength (N/m) ≥||4.9x104||4.9x104|
|Dielectric Constanct (106Hz)||2.15|
|Dissipation Factor 106Hz≤||1x10-3|
|Volume resistance (Ω.m)||1x1014|
Dia ø1.5 --300mm, Thickness: 0.015mm to 0.75mm. Length :50mm to unlimited.
For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm .
Color and sizes can be customiszed .Surface treated can be done (chemical or plasma treated)
Plastic bag &carton . Customized is acceptable
