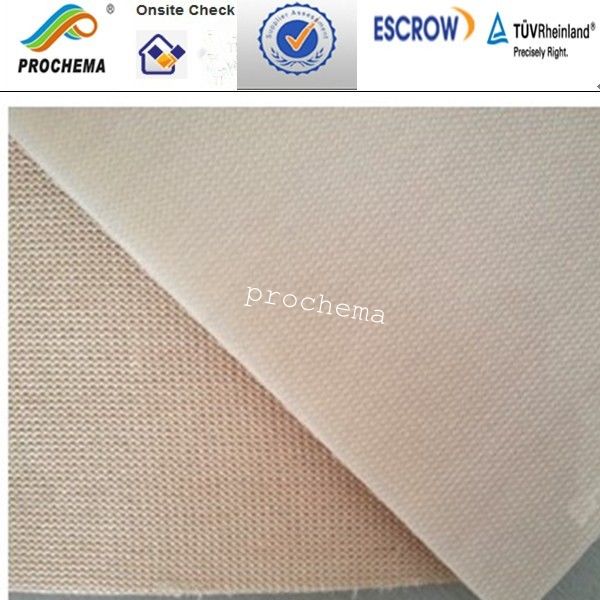

PFA glass fiber sheet , PFA compounded sheet ,PFA 1200mm width sheet
PFA( Perfluoroalkoxy alkane) it kept a PTFE excellent chemistry stability, low, high temperature resistance, dielectric property, self-lubricating, anti-sticking, , ageing resistance, folding and cracking resistance are the outstanding characteristic of it, its mechanical strength in high temperature is more than 1.6 times as PTFE.
Note: If you need any products of ours, please kindly contact with us directly by following contaction . Then we can reply you faster and easy . Thanks
Properties :
High low temperature resistance:-200--260°C,high temperature strength is 2 times higher than PTFE
Good adhesive and heat sealability with PTFE
Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).
None stick to water ,oil :water contact angle:θ=115o
Electric reliability,High dielectric60HZ-60MHZ ,Under the high and low temperature,thepermittivitykeeps 2.1 even if the surface damaged ,it won’t has conductive track.
Volume resistance>1018ΩM
Surface resistance>2*1013Ω
Voltaic Arc Resistance>165s No electric leakage
Weather resistance:It can be used in sunlight and ozone long
Anti-corrosion:Only in high temperature,Fluorin and alkaliscan effect it,others acid,alkali or ester won’t effect it.
Fireproof :If firing, and will still insulate .
High diaphaneity
UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient
Easy to process for second time self-close, self-turning
Specification:
Standard:
0.5mm to 150mm
regular size : 150x300 mm200mm× 200mm300x300mm400mm× 400mm500x500mm
0.5-4mm Max width 1200mm x 2000mm
|
Technology dataPFA |
||
|
Items |
Properties |
Indicators |
|
physical properties |
specific gravity(g/cm³) |
2.12~2.17 |
|
melting point(°C) |
302~312 |
|
|
melt index(g/10min) |
5~25 |
|
|
electrical properties |
tensile strength(Mpa) |
27~29 |
|
elongation at break(%) |
250~300 |
|
|
rigidity(SH) |
D60~70 |
|
|
|
coefficient of kinetic friction |
0.2 |
|
mechanical properties |
volume resistivity(Ω.CM) |
≥10 18 |
|
insulated breaking voltage(0.2mm)/(mv/m) |
20 |
|
|
dielectric constant 1MHz |
2.1 |
|
|
dielectric loss angle tangent 1MHz |
≤0.003 |
|
Application:
· Coating cable
· Valve and pump linings
· Insulating bushings
· Release applications
· Pharmaceutical industry
· Semi-conductor industry
LiningBearing pads,anticorrosiveseals,electrical insulation, inner tubelining,anticorrosive gasket,fireproof sheet, High-low temperature sheet, semiconductor protected parts
Technology requirements:
Surface smooth, flat, no pinhole, no bubble, no impurity, edge smooth and flat
