|Place of Origin:||China|
|Minimum Order Quantity:||100m|
|Packaging Details:||plastic bag and carton|
|Delivery Time:||3-10 days|
|Payment Terms:||T/T Prepaid|

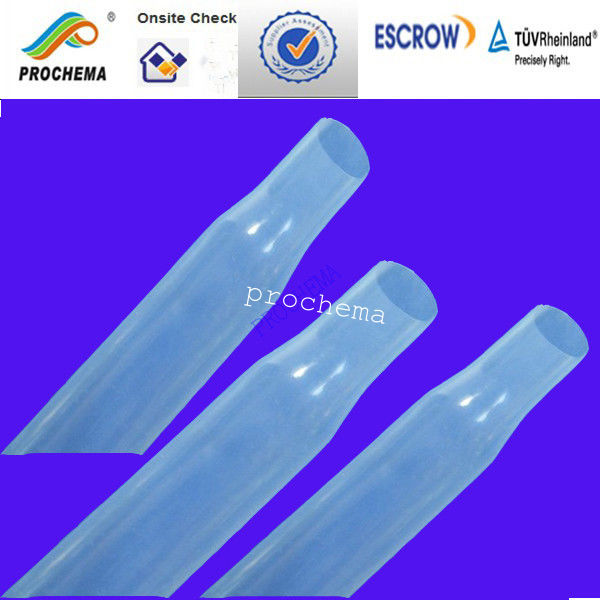

PFA shrink tube, PFA Shrinkable tube
PFA shrink tube is made from PFA resin and prepared by the technology of thermoplastic extrusion and blowing. It has non-sticking, heat-resistance, aging resistance, corrosive resistance, non-flammability and good electric property.It can besolid adhesive for PTFE and also a good adhesive for laminating various materials. Its working temperature isup to
260 and is an ideal material for circuit board and flat cable.
Note: If you need any products of ours, please kindly contact with us directly by following contaction . Then we can reply you faster and easy . Thanks
Office-work machine 's roll packing
paper machine's roll packing
printing and dyeing machine's roll packing
printing machineroll packing
the main insulation of rotor of the electric instrument
make the magma sample in the field of oil field ect.
LCD manufacturing plant
Connect body to single-ended luminous tube for single core optical fiber
Heat exchanger ,Steam piping
High purity reagents duct
All kinds of corrosive medium (harsh solvents) pipeline
Various frequentcy electric wire ,electric cable sheath , slot insulation tube(submersible motor wiring harness with slot insulation pipe, air conditioning components with tube).
Turnkey flourine plastic tube for type O sealing ring
UV lamp protecting
FEP & PFA has perfect anticorrosive properties and heat resistance and electric resistance. they are widely used in the fields of electrical,petrochemical,industrial,IT industrial.They are the perfect material so making VU lamp protection tube, anticorrosice tube
PFA is both transparent to UV-A and UV-C light and totally resistant to it as well as being temperature resistant. Therefore ,it makes an excellent material for shatter proofing UV lamps used in the food industry where glass free areas are required. Other plastic voerings enbrittle or discolour under the effect of the UV radiation . If the lamp suffers damage ,the glass is contained in teh shrunk on jacket.
Linear Lamps of any Size.
Circular and other shapes.
Fitted boots for U shaped lampes.
Low light transmission loss
Loss of UVA AND UVC light is much less compared with other polymer coatings. For our usual coatings,loss of UVA is arround 4% and UVC is 11%.We know of no other suitable flexible coatings that provide less loss of UV.
High low temperature resistance:
-200--260°C,high temperature strength is 2 times higher than PTFE
Good adhesive and heat sealability with PTFE:
Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).
None stick to water ,oil :water contact angle:θ=115o
Electric reliability,High dielectric
60HZ-60MHZ,Under the high and low temperature,thepermittivitykeeps2.1even if the surface damaged ,it won’t has conductive track.
Voltaic Arc Resistance>165sNo electric leakageWeather resistance:It can be used in sunlight and ozone long
Anti-corrosion:Only in high temperature, Fluorin and alkalis can effect it,others acid,alkali or ester won’t effect it.
Fireproof :If firing, and will still insulate .
UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient
Technical index of PFA:
|General purpose||Electric purpose|
|Temperature range°C||-200 -+260||-200 -+260|
|Longi&tray,shrink rate %≤||3.0||3.0|
|Tensile strength Mpa ≥||14||14|
|Elongation at break %≤||175||175|
|Tear Strength (N/m) ≥||4.9x104||4.9x104|
|Dielectric Constanct (106Hz)||2.15|
|Dissipation Factor 106Hz≤||1x10-3|
|Volume resistance (Ω.m)||1x1014|
Dia ø1.5 --300mm, Thickness: 0.015mm to 0.75mm. Length :50mm to unlimited.
For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm .
Color and sizes can be customiszed .Surface treated can be done (chemical or plasma treated)
Plastic bag &carton . Customized is acceptable
