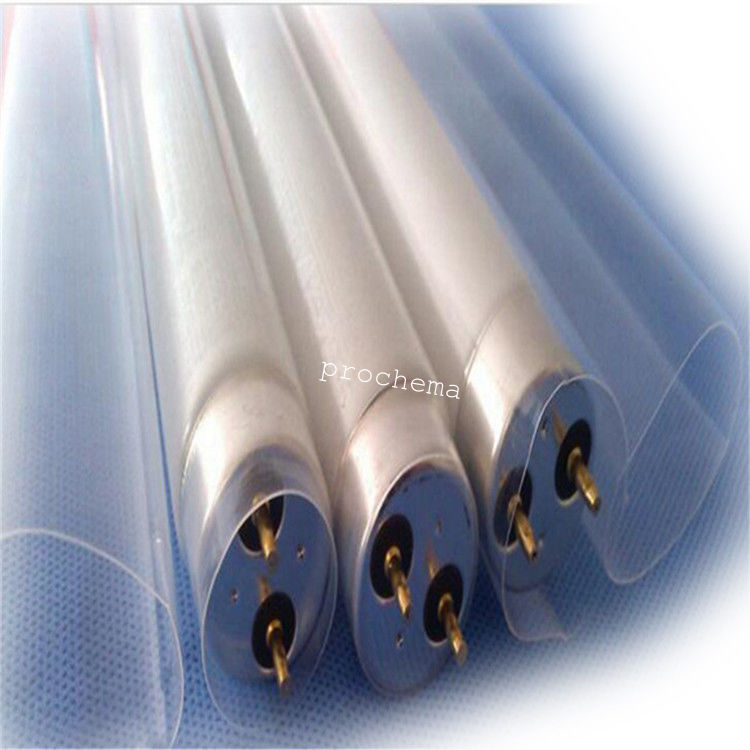

UV resistance PFA heat shrink for UVA lamp

UV resistance PFA heat shrink for UVA lamp

    • UV resistance PFA heat shrink for UVA lamp
    • UV resistance PFA heat shrink for UVA lamp
    • UV resistance PFA heat shrink for UVA lamp
    • UV resistance PFA heat shrink for UVA lamp
    • UV resistance PFA heat shrink for UVA lamp
    • UV resistance PFA heat shrink for UVA lamp
    • UV resistance PFA heat shrink for UVA lamp
  • UV resistance PFA heat shrink for UVA lamp

    Product Details:

    Place of Origin: China
    Brand Name: PROCHEMA
    Certification: MSDS

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Price: negotiate
    Packaging Details: plastic bag and carton
    Delivery Time: 3-10 days
    Payment Terms: T/T Prepaid
    Contact Now
    Detailed Product Description

    PFA shrink tube, PFA Shrinkable tube, UV resistance PFA heat shrink for UVA lamp

    Introduction:



    PFA shrink tube is made from PFA resin and prepared by the technology of thermoplastic extrusion and blowing. It has non-sticking, heat-resistance, aging resistance, corrosive resistance, non-flammability and good electric property.It can besolid adhesive for PTFE and also a good adhesive for laminating various materials. Its working temperature isup to

    260 and is an ideal material for circuit board and flat cable.



    Note: If you need any products of ours, please kindly contact with us directly by following contaction . Then we can reply you faster and easy . Thanks
    UV resistance PFA heat shrink for UVA lamp

    Usage :

    Office-work machine 's roll packing

    paper machine's roll packing

    printing and dyeing machine's roll packing

    printing machineroll packing
    insulated jacket

    the main insulation of rotor of the electric instrument

    water treatment

    make the magma sample in the field of oil field ect.

    LCD manufacturing plant

    Connect body to single-ended luminous tube for single core optical fiber

    Heat exchanger ,Steam piping

    High purity reagents duct

    All kinds of corrosive medium (harsh solvents) pipeline

    Various frequentcy  electric wire ,electric cable sheath , slot insulation tube(submersible motor wiring harness with slot insulation pipe, air conditioning components with tube).

    Turnkey flourine plastic tube for type O sealing ring

    UV lamp protecting

    FEP & PFA has perfect anticorrosive properties and heat resistance and electric resistance. they are widely used in the fields of electrical,petrochemical,industrial,IT industrial.They are the perfect material so making VU lamp protection tube, anticorrosice tube

    PFA is both transparent to UV-A and UV-C light and totally resistant to it as well as being temperature resistant. Therefore ,it makes an excellent material for shatter proofing UV lamps used in the food industry where glass free areas are required. Other plastic voerings enbrittle or discolour under the effect of the UV radiation . If the lamp suffers damage ,the glass is contained in teh shrunk on jacket.

    Linear Lamps of any Size.

    Circular and other shapes.

    Fitted boots for U shaped lampes.

    Low light transmission loss

    Loss of UVA AND UVC light is much less compared with other polymer coatings. For our usual coatings,loss of UVA is arround 4% and UVC is 11%.We know of no other suitable flexible coatings that provide less loss of UV.

    Properties :

    High low temperature resistance:

    -200--260°C,high temperature strength is 2 times higher than PTFE
    Good adhesive and heat sealability with PTFE:

    Below melting point ,it wont stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).

    None stick to water ,oil :water contact angle:θ=115o
    Electric reliability,High dielectric
    60HZ-60MHZ,Under the high and low temperature,thepermittivitykeeps2.1even if the surface damaged ,it wont has conductive track.

    Volume resistance>1018ΩM
    Surface resistance>2*1013Ω
    Voltaic Arc Resistance>165sNo electric leakageWeather resistance:It can be used in sunlight and ozone long
    Anti-corrosion:Only in high temperature, Fluorin and alkalis can effect it,others acid,alkali or ester wont effect it.

    Fireproof :If firing, and will still insulate .

    High diaphaneity

    UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient

    Technical index of PFA:

      Item Value
        General purpose Electric purpose
      Density g/cm3 2.12-2.17 2.12-2.17
      Temperature range°C -200 -+260 -200 -+260
      Longi&tray,shrink rate % 3.0 3.0
      Tensile strength Mpa ≥ 14 14
      Elongation at break % 175 175
      Tear Strength (N/m) ≥ 4.9x104 4.9x104
      Dielectric Constanct (106Hz)   2.15
      Dissipation Factor 106Hz   1x10-3
      Volume resistance (Ω.m)   1x1014





    Dielectric StrengthTH0.05mm

    Th 0.05-0.1mm

    M/VTH ≥0.1mm

      100
        75
        50

    Specification

    Dia ø1.5 --300mm, Thickness: 0.015mm to 0.75mm. Length :50mm to unlimited.

    For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm .

    Color and sizes can be customiszed .Surface treated can be done (chemical or plasma treated)

    Package :

    Plastic bag &carton . Customized is acceptable
