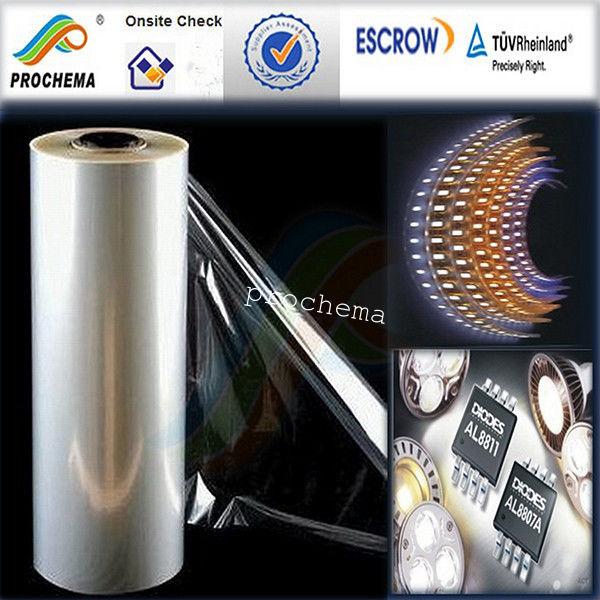

ETFE encapsulating film for LED encapsulating

ETFE encapsulating film for LED encapsulating

ETFE  encapsulating film for LED encapsulating

Product Details:

Place of Origin: China
Brand Name: prochema
Certification: MSDS ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 2000sqm
Price: negotiate
Packaging Details: carton
Delivery Time: 7-14 days
Payment Terms: T/T, Western Union
Supply Ability: 500000sqm per month
Contact Now
Detailed Product Description

ETFE encapsulating film for LED encapsulating



Features: light resistance, weather resistance, insulation resistance, flame resistance

Application: solar cell ,Semiconductor sealing , Mold releasing films, roofing and architectural facades, interior finishing and photovoltaics ,Green house

Required characteristics: light resistance, weather resistance, insulation, etc.



Our ETFE film is made by the complete set of imported equipment . It has the properties of anticorrosive ,weather fastness ,aging resistant ,Good radiation stability,nonstick, chemical stability ,dielectric insulation ,nontoxic and low crock etc.


It is widely used in the fields of Semiconductor ,LED ,FPC,flexible solar cell ,medical packing,construction ,Agriculture etc.

Surface treating ,matting treating,width cutting etc can be done based on buyer’s requirements.

ETFE  encapsulating film for LED encapsulating


Heat resistance: can work at temperature range of 150-180oC

Anti-chemical: Tolerate all kinds of harsh conditions.

Non-stick:  After releasing , products surface keeps clean and no pollution



ETFE specification






Grade Thickness (um) Width (mm) Weight kg/roll Length (m) Length tolerance (mm) Color Surface condition
25C 25 1250 54.7 1000 +5,-0 transparent Glossy/Matt
50C 50 1250 54.7 500 +5,-0 transparent Glossy/Matt

ETFE film Technical Data Sheet

Item Unit Data
Specific Gravity g/cm3 1.74
Melting point oC 260+/-10
Tensile strength Mpa >39.2
Tensile Elongation % 200-510
Tear Strength N/mm 170-250
Volume Specific Resistance Q.cm 1x1015
Linear Dimensional change % +/-5%

General Properties of ETFE film

1.Can be used at hight temperature over 200oC

2.Can stop mold bleed

3.Excellent ensile and tear strength

4.Oustanding non-stick

5.Non-toxicity for envirenment

6.Non flammability

7.Chemical resistance .

8.Weather resistance

9.Solvent resistance



We also can offer you the following products :


PFA film ,PFA transparent tube, PFA capillary tube,PFA heat shrinkable tube,PFA rod, PFA welding rod,PFA rectangle tube, PFA Lab things, PFA processed parts etc


FEP film ,FEP sheet, FEP transparent tube, FEP capillary tube, FEP heat shrinkable tube, FEP rod, FEP welding rod, FEP rectangle tube, FEP Lab things,FEP gas sample bag, FEP processed parts etc.


PCTFE sheet, PCTFE rod, PCTFE tube, PCTFE processed parts etc


PVDF film ,PVDF tube, PVDF rod, PVDF welding rod, PVDF PIEZO film ,PVDF processed parts etc.


Perfluorinated ion-exchanging film ,ETFE film , PVF film


For quotation, please kindly contact us with below detail information to speed up our service:


1.Thickness and width

2.usage and working environment

3.Matt or smooth (Single or double Matt or smooth)

4.Transparent or color film



Once we get your detail inquiry,we will reply you in 10 hours.

Wish you good business.
