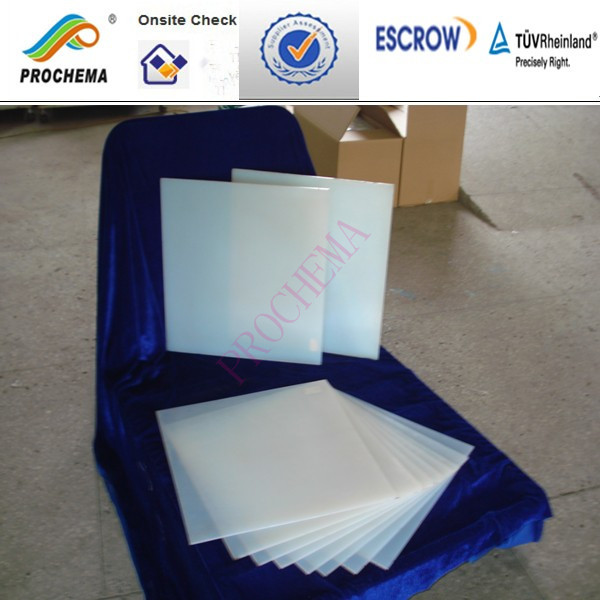

PFA Sheet 5-50mm

PFA Sheet 5-50mm

    • PFA Sheet  5-50mm
    • PFA Sheet  5-50mm
    • PFA Sheet  5-50mm
    • PFA Sheet  5-50mm
  • PFA Sheet  5-50mm

    Product Details:

    Place of Origin: China
    Brand Name: PROCHEMA
    Certification: MSDS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: negotiate
    Packaging Details: plastic bag and carton
    Delivery Time: 3-10 days
    Payment Terms: T/T Prepaid
    Contact Now
    Detailed Product Description

    PFA Sheet,

    PFA( Perfluoroalkoxy alkane) it kept a PTFE excellent chemistry stability, low, high temperature resistance, dielectric property, self-lubricating, anti-sticking, , ageing resistance, folding and cracking resistance are the outstanding characteristic of it, its mechanical strength in high temperature is more than 1.6 times as PTFE.

    Properties :

    High low temperature resistance:

    -200--260°C,high temperature strength is 2 times higher than PTFE

    Good adhesive and heat sealability with PTFE

    Below melting point ,it won’t stick any project.Above melting point, it has perfect adhesive property with PTFE, Metal and self-adhesion(heat sealing).

    None stick to water ,oil

    :water contact angle:θ=115o

    Electric reliability,High dielectric

    60HZ-60MHZ ,Under the high and low temperature,thepermittivitykeeps 2.1 even if the surface damaged ,it won’t has conductive track.

    Volume resistance>1018ΩM

    Surface resistance>2*1013Ω

    Voltaic Arc Resistance>165s No electric leakage

    Weather resistance:

    It can be used in sunlight and ozone long

    Anti-corrosion:Only in high temperature,Fluorin

    and alkaliscan effect it,others acid,alkali or ester won’t effect it.

    Fireproof :If firing, and will still insulate .

    High diaphaneity

    UL-Resistance :Good penetrability in ultraviolet radiation,and lowest refraction coefficient

    Easy to process for second time self-close, self-turning



    0.5mm to 150mm

    regular size : 150x300 mm200mm× 200mm300x300mm400mm× 400mm500x500mm

    0.5-4mm Max width 1200mm x 2000mm

    Technology dataPFA




    physical properties

    specific gravity(g/cm³)


    melting point(°C)


    melt index(g/10min)


    electrical properties

    tensile strength(Mpa)


    elongation at break(%)





    coefficient of kinetic friction




    volume resistivity(Ω.CM)

    ≥10 18

    insulated breaking voltage(0.2mm)/(mv/m)


    dielectric constant 1MHz


    dielectric loss angle tangent 1MHz




    · Coating cable

    · Valve and pump linings

    · Insulating bushings

    · Release applications

    · Pharmaceutical industry

    · Semi-conductor industry

    LiningBearing pads,anticorrosiveseals,electrical insulation, inner tubelining,anticorrosive gasket,fireproof sheet, High-low temperature sheet, semiconductor protected parts

    Technology requirements:

    Surface smooth, flat, no pinhole, no bubble, no impurity, edge smooth and flat
