| Place of Origin: | China |
| Brand Name: | PROCHEMA |
| Certification: | MSDS |
| Minimum Order Quantity: | 100kgs |
|---|---|
| Price: | USD80-85/kg |
| Packaging Details: | plastic bag and carton |
| Delivery Time: | 3-10 days |
| Payment Terms: | T/T Prepaid |
| Usage: | 3d Printer Releasing | Fireproof: | It Won't Burn In Air,and Vo Grade |
|---|---|---|---|
| Transparency: | Transparent | Material: | FEP |
| Feature: | Fireproof | Non-sticking: | It Can Not Stick To Any Thing Without Tbeing Treated |
| Anticorrosive: | Can Be Used Kinds Of Chemical,medical Fields |

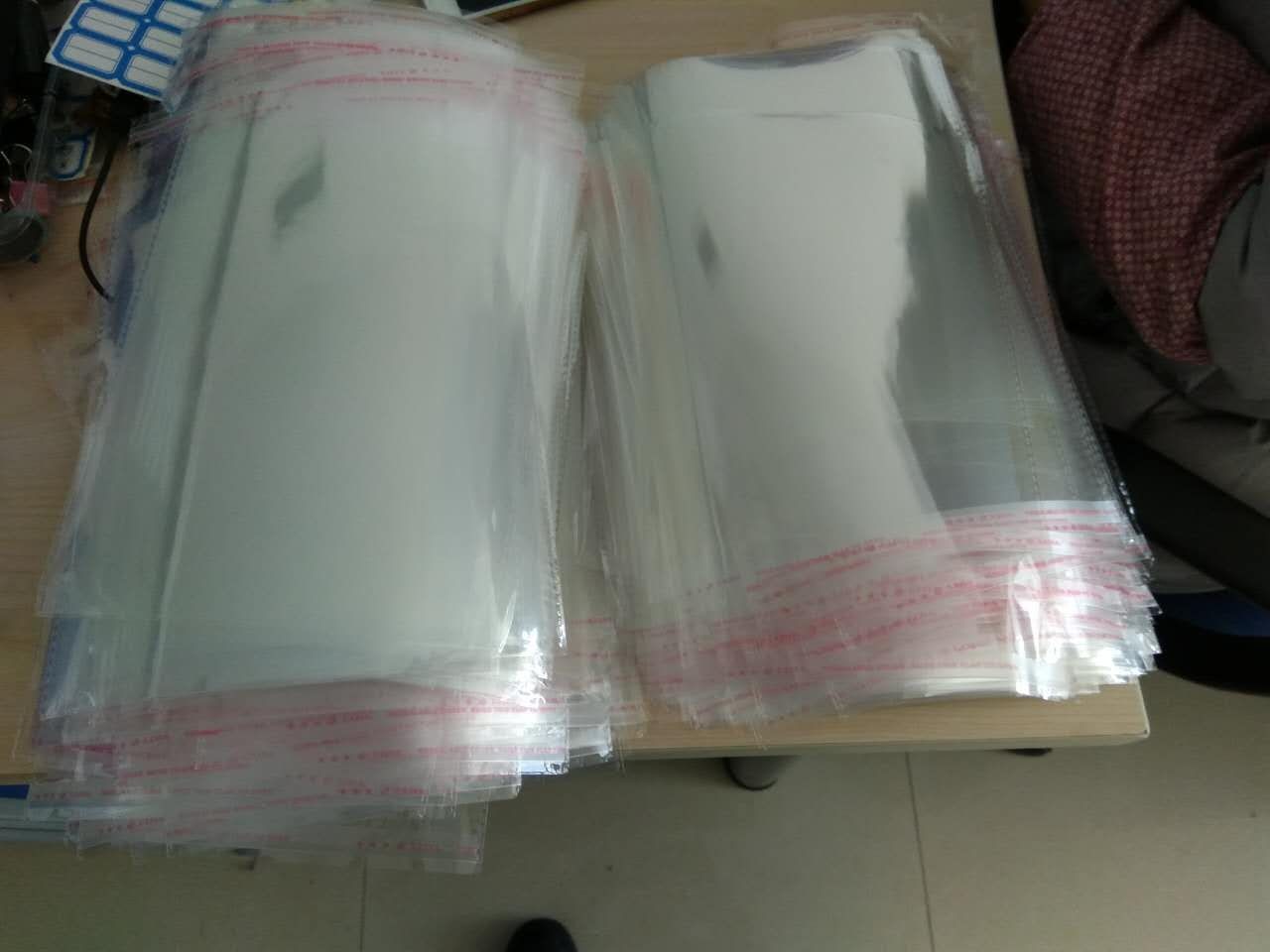

0.15mm FEP film for 3d Printer release 0.15mm x 1250mm
regular size with adhesive 210x290mm
one or both sides with adhesive.
0.15X1250mm release film without adhesive
size and thickness can be customised.
FEP has very good charactor of heat resistance ,electric resistance,chemical resistance. It is widely used in Aviation spaceflight,instrument,Medical treatment Pharmacy,Electric instrument,Post &ccommunication,Petrochemical,Metallurgy &electric power,home electri products,illmination &illume.
There are two methods to produce FEP film . Mould&blowing and Tape-casting .
For some reasons, the FEP film's surface need treating . So there is three method to treat with the surface . Plasma ,chemical and corona . One or both sides treated. Based on the final usage.
Note: If you need any products of ours, please kindly contact with us directly by following contaction . Then we can reply you faster and easy . Thanks
Properties:
1:non-stick ,
2:corrosion resistant
3:high/low temperature resistance
4:High diaphaneity
Usage:
3D printing releasing
Characteristic:
Good adherence .
Good adherence to mental.
High and low temperature preservation
-200~200°C high temperature intensity better than F4
No-begriming ,and no-stagnant in tube
Touching point θ=114°
Security and insulation
Under 60HZ—60MHZ high and low temperature , permittivity is 2.1.
If firing, and will still insulate .
Volume resistance more than1018Ωm
Surfce resistance more than 2 X1013Ω
Voltaic Arc more than 165 seconds insulation
High diaphaneity
Good penetrability in ultraviolet radiation,and lowest refraction coefficient
High diaphaneity
Lowest refractive index in plastic material
Weather-assistant
Under ozone and sunshine for long time
Easy to process for second time
Size:
Tape-casting FEP film
0.025 to 0.2mm x 1250mm ,Better tolerance ,better tensile strength (Can be used for 3D printing release)
MOQ 100kgs, for price, please get contact with us .
Others :
FEP blowing film :
(Film: double layers, flat width). If need single layer, we can cut it open .
0.0125mm to 0.5mm, Max width : 1000mm fold width .
0.0125mm to 0.3mm Width 300mm
0.02-0.2mm Max width 1000mm
FEP skived sheet
0.5-4mm : Width 300mm
FEP moulded sheet :
5-20mm: 200x200 300x300 400x400 500x500mm
FEP Main Properties
Item | Value |
Tensile Strength | MPa≥20 |
Elongation @ Break) | %≥250 |
Relative Density | 2.14~2.17 |
Specification
Mould and blowing film
| Thickness | Width (flat width,double layers) |
| 0.0125 --0.3mm | 50-300mm |
| 0.0125 to 0.15mm | 50-1000mm |
| 0.5 to 3 | 300-1200mm (sheet) |
MOQ:width :50-300mm 20kgs
width:300-1000mm 100kgs
Tape-casting film : MOQ 100kgs or one roll if there are goods in stock
Color can be customiszed .Surface treated can be done (chemical or plasma treated)
Plastic bag &carton . Customized is acceptable
